◇ 제품정보 ◇		▒ Piezo Buzzer ▒



Model	:	EFM-321S


SPEC	:	105 /12VDC/30cmdB


Remark1	:	3 ~ 16VDC

PIEZO BUZZER EFM

PIEZO BUZZER EFM-321S

Piezo Buzzer

	Model	:	EFM-321S

	Min. Sound Pressure Level	:	105 /12VDC/30cmdB

	Operating Voltage	:	3 ~ 16VDC

	Rated Voltage	:	12VDC

	Max. Consumption	:	35 /12VDCmA

제품상세설명

FEATURES

High output
Sealed type
High reliability

　

ELECTRICAL SPECIFICATIONS

TYPE	UNIT	EFM-321S
Min. Sound Pressure Level	dB	105 /12V_DC/30cm
Rated Voltage	V_DC	12
Operating Voltage	V_DC	3 ~ 16
Max. Consumption	mA	35 /12V_DC
Oscillating Frequency	kHz	2.9 ± 0.5
Tone Nature		Continuous
Operating Temperature	ºC	-20 ~ +70
Weight	g	22
Case Material/Colour		Fire-resistance ABS/White

　

PACKING INFORMATION

Packing	500 pcs per export carton
Carton Size	47 X 30.5 X 25 cm
G. Weight	8.0 kgs
N. Weight	6.5 kgs

　

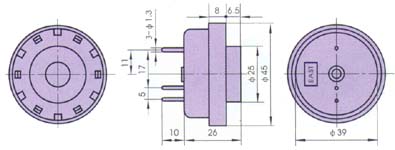

DIMENSIONS

UNIT : mm

CHARACTERISTICS
